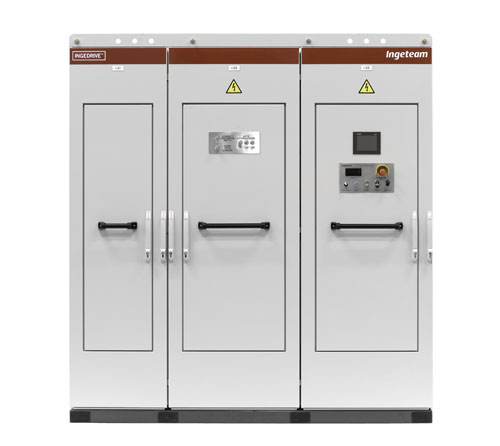

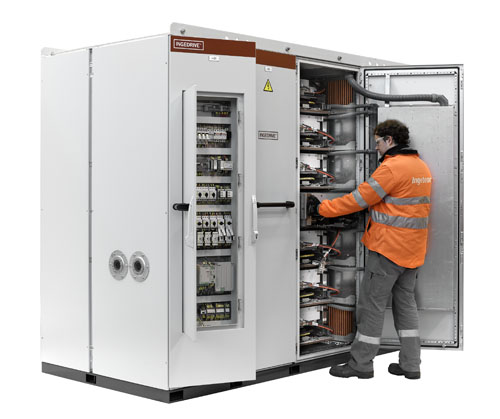

| INGEDRIVE MV100 |
| General data |
| Inverter type |
Three-level NPC voltage source inverter with HV-IGBT power semiconductors
|
| Main supply voltage (1) |
2 x 1850 VAC (12P DFE)
4 x 1850 VAC (24P DFE)
3300 VAC (AFE)
|
2 x 2350 VAC (12P DFE)
4 x 2350 VAC (24P DFE)
4160 VAC (AFE)
|
| Output power range |
800 kW - 4.8 MW (air cooled)
2.5 MW - 12.7 MW (water cooled)
|
| Supply voltage tolerance |
Tipically ± 10%
|
| Supply frequency |
50 / 60 Hz (± 5 %)
|
| Input power factor |
0.96 for DFE rectifiers
1 for AFE rectifiers
|
| Output voltage (2) |
0 to 3150 VAC for DFE rectifiers
0 to 3300 VAC for AFE rectifiers
|
0 to 4160 VAC for DFE rectifiers
0 to 4160 VAC for AFE rectifiers
|
|
Output frequency
|
0 Hz - 100 Hz (higher on request)
|
0 Hz - 70 Hz (higher on request)
|
| Efficiency at rated load |
Tipically > 0.97 for DFE rectifiers
Tipically > 0.96 for AFE rectifiers
|
| Motor types |
Induction, synchronous or permanent magnet motor
|
| Converter cooling |

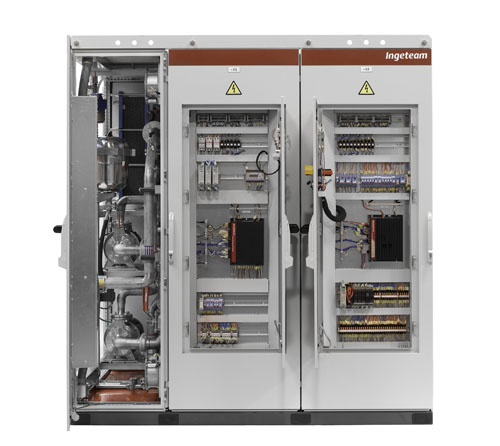

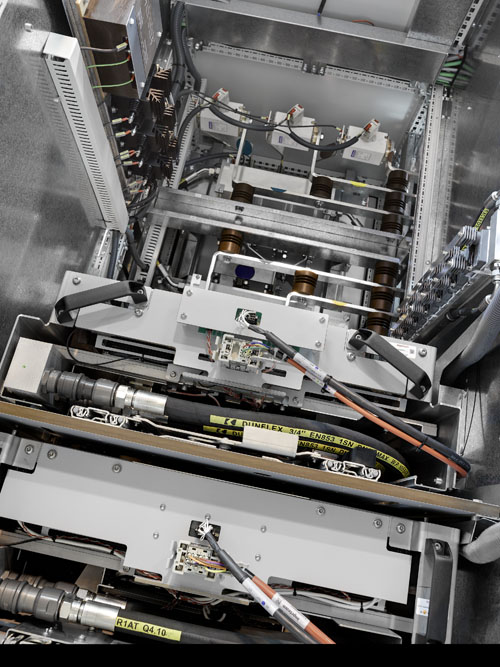

Air cooled or Water cooled with built-in water to water heat exchanger
|
| Control properties |
| Control types |
VC Vector Control / VF Voltage Frequency (3)
|
| Static speed acc. (closed loop) (4) |
<0.01% in field weakening / <0.01% at constant flow
|
| Static torque acc. (closed loop) (4) |
<1 % in field weakening / <1 % at constant flow
|
| Static torque acc. (open lloop) (4) |
<2 % in field weakening / <2 % at constant flow (for synchronous motors)
<5 % in field weakening / <3 % at constant flow (for induction motors)
|
| Torque response time |
< 10 ms
|
| Shaft torque ripple (4) |
± 1 %
|
| Drive protection functions |
Overcurrent, overvoltage and undervoltage monitoring; earth fault; short circuit detection and protection; semiconductor failure monitoring; cooling supervision; phase loss and others
|
| Motor protection functions |
Overload (5), Overspeed
|
| Environmental Conditions |
| Ambient temp. for storage |
- 15 ºC to + 75 ºC (for empty cooling system in water cooled version)
|
| Ambient temp. for transport |
- 15 ºC to + 75 ºC (for empty cooling system in water cooled version)
|
| Operation altitude |
< 1000 m above sea level (100 % load capacity)
> 1000 m above sea level (with derating)
|
| Relative air humidity |
5 % - 95 % (condensation not permitted)
|
| Paint colour |
RAL 7035 (others on request)
|
| Compliance with standards |
IEC 61800-4, IEC 60146-1-1, marine standars
|
| Air cooled converter |
| Noise |
< 85 dB (A) at a distance of 1m from the cubicle
|
| Ambient temp. for operation |
+ 0 ºC to + 40 ºC (higher with derating)
|
| Degree of protection |
IP21 (others on request)
|
| Water cooled converter |
| Noise |
<75 db (A) at a distance of 1m from the cubicle
|
| Ambient temp. for operation |
+ 0 ºC to + 45 ºC (higher with derating)
|
| Degree of protection |
IP44 (others on request)
|
| Primary circuit coolants allowed |
Seawater or freshwater
|
| Primary coolant temp. allowed |
+ 0 ºC to + 38 ºC (higher with derating)
|
| Primary circuit pressure drop |
< 1.5 bar
|
| Max. primary service pressure |
6 bar
|
| Max. primary ΔT |
6º C
|
| Secondary circuit coolant |
Controlled pre-mixed liquid (fresh water < 10 µS/cm + anti-freezing)
|
| Secondary circuit features |
Redundant pump
|
| Main Options |
|
Dynamic braking chopper, different communication modules, dv/dt filter, sinusoidal filter, input / output isolation switch, motor grounding switch, marine customization and others
|
