Zero Export self-consumption systems

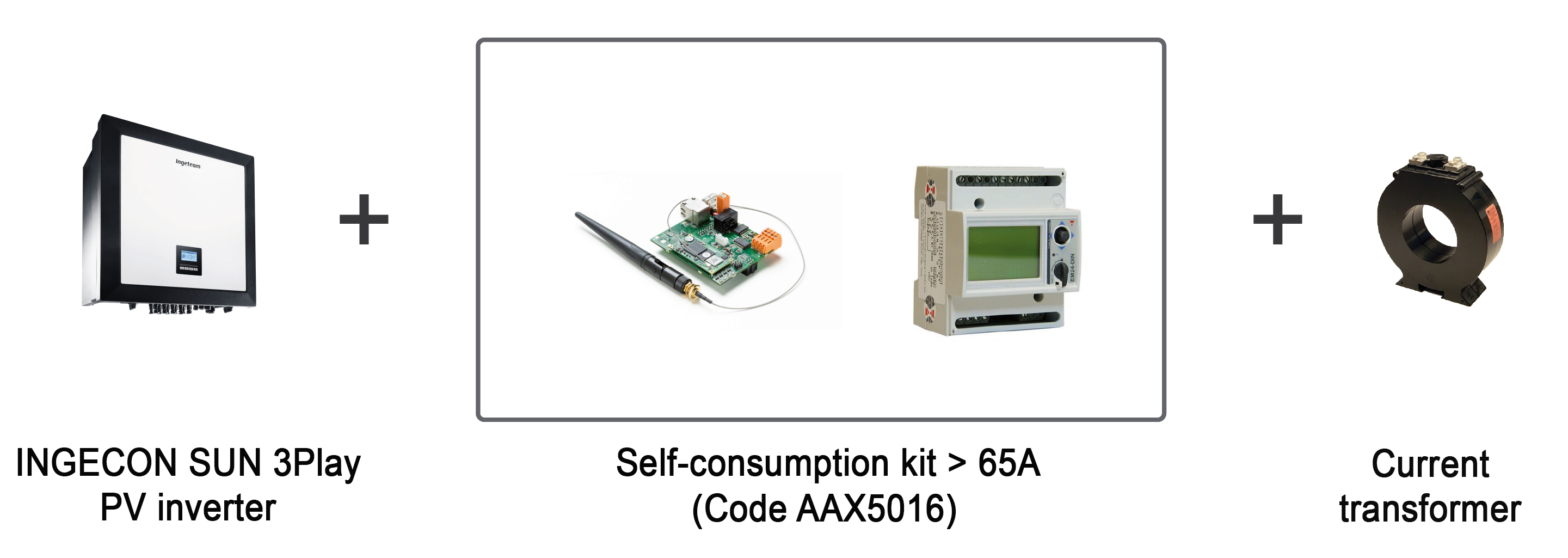

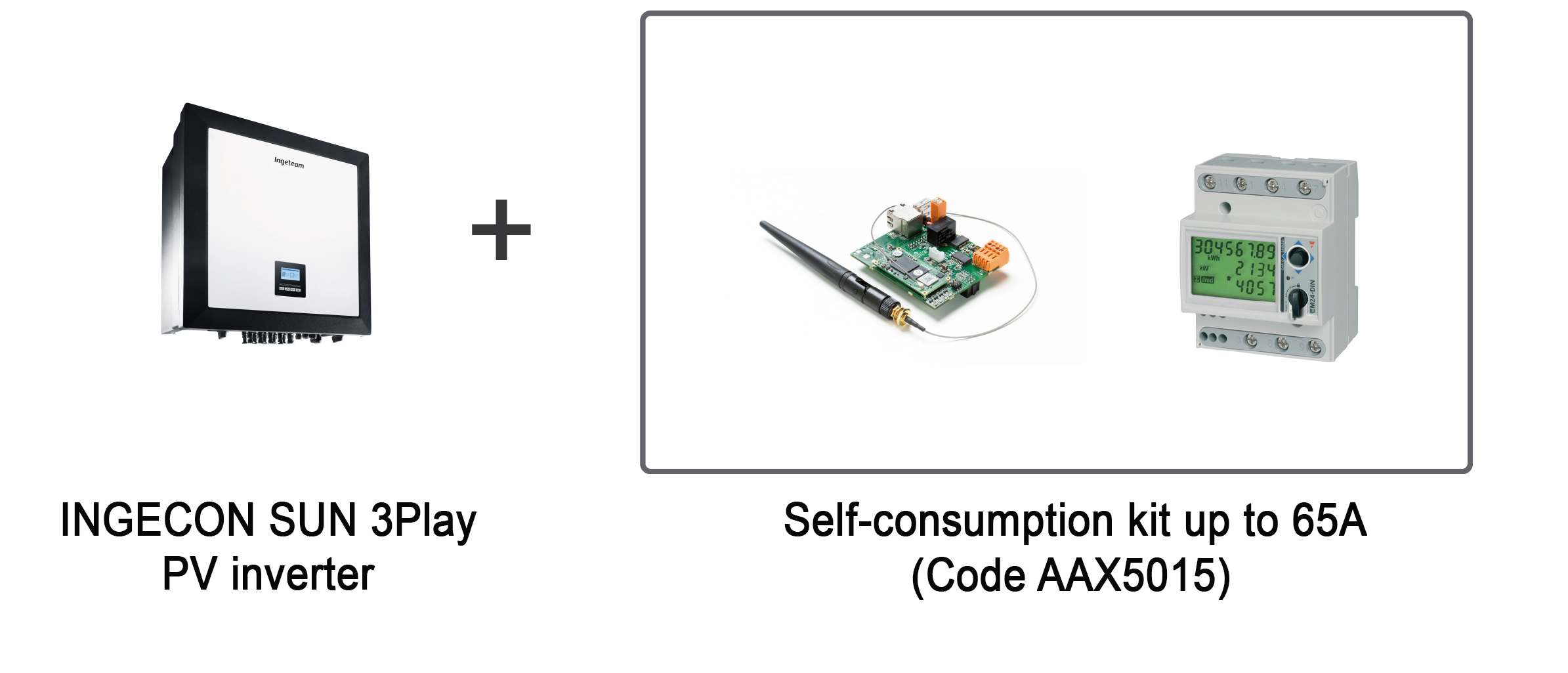

The self-consumption kits (up to 65A -code AAX5015- or beyond 65A -code AAX5016) are required in order to control the PV inverter operation to guarantee that it does not export energy to the grid. This system has been certified by an external laboratory in accordance with the UNE 217001:2015 IN standard.

Self-consumption systems with energy injection to the grid

The INGECON SUN 3Play PV inverter enables to monitor the energy generated at the installation. Optionally, the self-consumption kits (code AAX5015 or AAX5016) allow for an advanced system monitoring in order to access all the information related to the energy self-consumed and the energy injected to the grid via the INGECON SUN Monitor PC and Smartphone application.

*The current transformer is not supplied by Ingeteam.

Technical information

• EMS manual.
• Installation and configuration manual for self-consumption systems.
• Firmware and software.
• Electric diagram.
