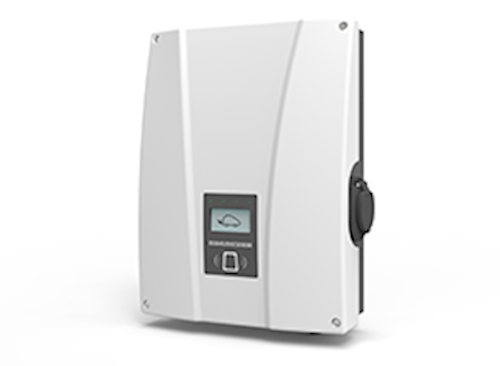

The INGEREV GARAGE charging stations feature an enclosure specially conceived for an on-wall installation, rather indoor than outdoor, and they have been designed to be used in public parking lots, hotels, shopping cetres, private fleets, neighbourhoods, etc.
These equipment present a current inlet Type 2 according to the IEC 62196-2 standard, allowing to charge in mode 3 (IEC 61851), guaranteeing a secure charging process. The mode 3 input features a cable retention and blocking system in order to avoid its disconnection from a non-authorised user.
In addition, the charging station has a domestic input to charge in modes 1 and 2. This input is limited to 10 Amps for security reasons.
The INGEREV GARAGE charging station is available in both single and three-phase versions, with an output power ranging from 3.7 to 22 kW. In the event of a grid outage, the stations automatically recover their previous state, guaranteeing the correct ending of the charging process.
Thanks to their communication capacities, it is possible to identify the users and to charge them according to the established rate, by using a software from Ingeteam or from a third party.
The INGEREV GARAGE charging station allows the interconnection with other stations from the INGEREV series by using a RS-485 protocol. Up to 10 stations can be enchained.
The addition of an Ethernet or GPRS/3G hardware makes it possible to remotely connect any station or integrate them into a Control Centre. The INGEREV stations support the OCPP protocol and they can be integrated into most of the control systems of the electrical companies.
Ingeteam brings its clients at no extra cost the possibility of using its software to configure, access and manage all the data coming from the charging stations. This software is the INGECON SUN Manager.
More detailed info at the Download section.
Technical Assistance Service
In case of an incident with an INGEREV GARAGE charging station, please contact our Technical Assistance Service at the telephone number 0034 948 698 715 or at the e-mail address firstname.lastname@example.org
