Greater power density

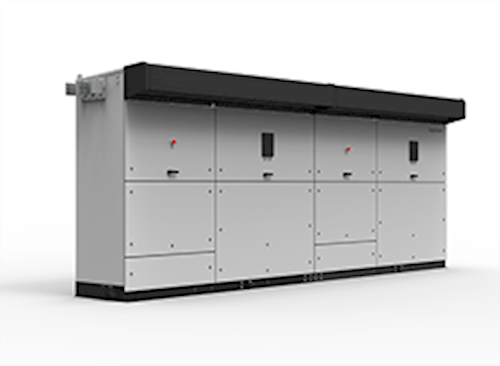

These PV central inverters feature more power per cubic foot. They are able to manage a greater amount of power in two power blocks with a combined AC output line.

Latest generation electronics

The B series inverters integrate an innovative control unit that runs faster and performs a more efficient and sophisticated inverter control, as it uses a last-generation digital signal processor. Furthermore, the hardware of the control unit allows some more accurate measurements. These inverter series feature a lower power consumption thanks to a more efficient power supply electronic board.

Integrated DC and AC connections

As well as the other INGECON SUN PowerMax series, the B series inverters integrate the DC and AC connections in the same cabinet, facilitating maintenance and repair work. The AC output lines are combined in a single busbar in order to facilitate installation works and the connection with the MV transformer.

Maximum protection

These three-phase inverters are equipped with a motorized DC breaker to decouple the PV generator from the inverter. Optionally, they can be supplied with an AC circuit breaker in addition to fuses, grounding kit and input current monitoring.

Grid support

This inverter series has been designed to comply with the most demanding grid connection requirements in the world. They feature then a low voltage ride-through capability, they can control the active power delivered to the grid and they can also deliver reactive power.

Thanks to a sophisticated control algorithm, this equipment can guarantee maximum efficiency depending on the PV power available. Thus, 98.9% maximum efficiency values can be achieved. Furthermore, they have been designed to ensure a service life of more than 20 years.


1500Vdc - Dual U B Series Datasheet
