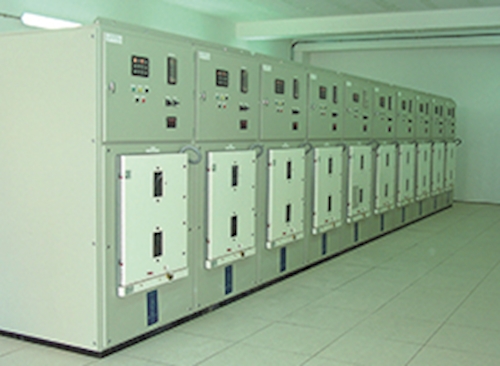

Our Industrial Systems Division has a long and recognized experience in designing and supplying the following Medium Voltage Distribution Centers, as either fixed or draw-out, for all kinds of industrial applications.

Electrical Characteristics
 Rated Voltage   7.2 / 12 / 17.5 / 24 / 36 kV
 Max. Rated Current  4.000 / 3.150 A
 Max. Rated Short-circuit Current  50kA, 3s
 Frequency  50 Hz - 60 Hz
 Internal Arc   50 kA, 0.5s
 Insulation  Air



















Mechanical Characteristics
 Type  Metal-clad LSC2B
 Protection Class  up to IP42
 Structure  Screwing Panel
 Minimum Thickness  2 - 3mm
 Circuit Breaker  SF6 or vacuum

















 Tests Type IEC
 Heating  62271-200
 Short-circuit  62271-200
 Protection Class  20324:1993
 Internal Arc  62271-200
 Seismic Test  60068-3-3

















Tests Type ANSI
 Heating  ANSI C37.20.2
 Short-circuit  ANSI C37.20.2
 Protection Class  NEMA 250/td>
 Internal Arc  ANSI C37.20.7
 Seismic Test  60068-3-3
