PLC coupler | INGEPAC™ SR PG

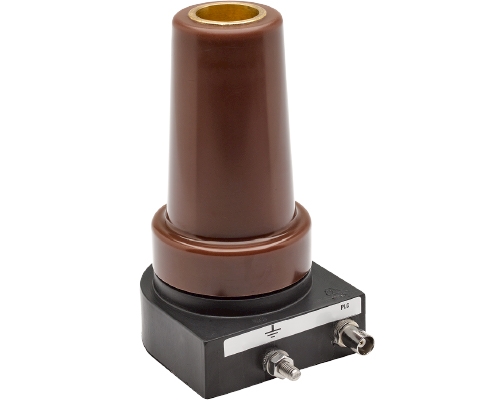

INGEPAC™ SR PG is a device that allows PLC communications coupling in gas-insulated switchgear, being able to transmit and receive in the 1-32 MHz range.

PLC couplers enable a cost-effective private communication channel over the medium voltage cable feeders.



Features

  • Frequency range: 1-32 MHz
  • Accuracy: ±1 º for the defined temperature range
  • Insertion: type C symmetrical T connector
  • Transformation ratio: 10,000:1
  • Protection level in primary area: IP65
  • Primary area material: resin
  • Power consumed: <3 W
  • Possible primary voltages assigned: 11 kV, 13.2 kV, 15 kV, 20 kV
